400mm Quartz Saw Blade
Diameter 250mm/ 300mm/ 350mm/ 400mm/ 450mm/ 500mm Special saw blade infrared bridge cutting machine, table cutting machine, hand-held saw
Description
Product Infor

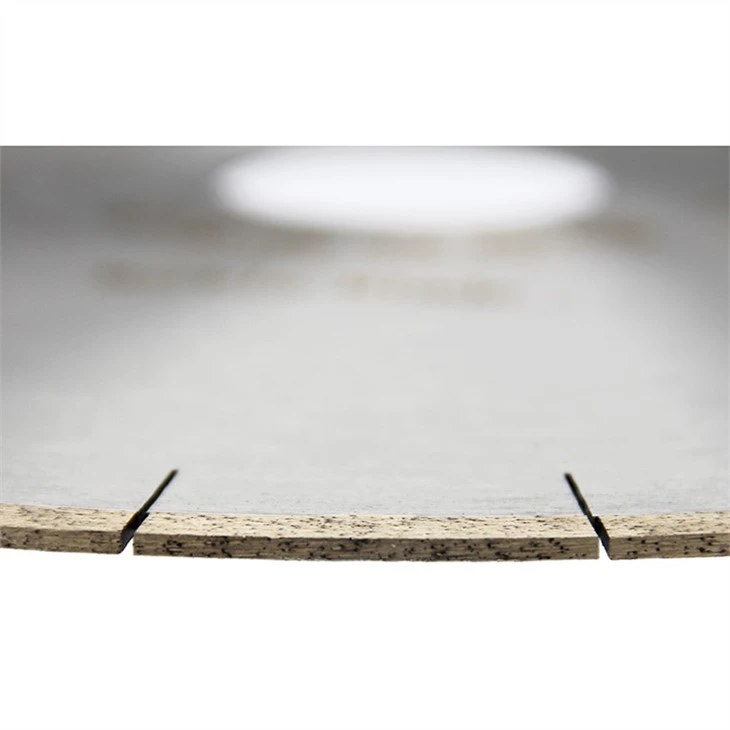

400mm quartz saw blades professionally cutting all kinds of quartz stone and granite, the cutting knife is smooth and fast, the sawing efficiency is very high, no cutting edge is damaged, the cutting edge is small, and the cutting surface is smooth exquisite.
Product specifications and parameters
Diameter(inch) | Diameter(mm) | Segment Size(mm) | Segment Numbers | Hole(mm) |
10" | 250 | 40/42*2.8*10 | 17/18 | 25.4/50/60 |
12" | 300 | 40/42*2.8*10 | 21/22 | 25.4/50/60 |
14" | 350 | 40.5/43*3.0*10 | 25/26 | 25.4/50/60 |
16" | 400 | 40.5/43*3.0*10 | 29 | 50/60 |
18" | 450 | 40.5/43*4.0*10 | 32 | 50/60 |
20" | 500 | 40.5/43*4.0*10 | 36 | 50/60 |
For different specifications of segments that can be customized.
The main parameters
Sharpness: cutting line speed per minute
Cutting 20MM thick quartz slab, the cutting speed is 4-5 meters per minute.
Life: The cutting life is related to the hardness and thickness of the cutting slab and the power of the cutting machine. Taking 350mm quartz blade as the example, it can cut about 2000 meters.
Steel blank of saw blade
 | The factory's in-house steel blank fabrication facility can accommodate custom-shaped product orders (including base size, appearance, tooth shape, middle hole, etc.). Steel Blank Type: 1.Normal Steel Blank: 65Mn steel is utilized, which has the benefits of being highly hard, well-suited for hardening, less prone to deodorization, and easily machined. Silent Steel Blank: By combining steel and copper sheets, the noise made by the saw blade while cutting can be significantly reduced. |
Applicable Equipment
The products can be applied to a variety of cutting equipment: bridge cutting machines, hand push cutting machines, infrared cutting machines, five-axis cutting machines and hand saws and other stone processing equipment. |  |
Packaging and Shipping
| Inner packing + transparent film bag+white/colorful box Outer packing: carton or pallet Express/train/air/ship |
Precautions: Instructions for Safe Use
1: When installing the cutting blade, the indicating rotation direction on the blade must be consistent with the rotation direction of cutting machine. 2: When installing the cutting blade, please tighten the fastening nut. In order to prevent causing beating during the using of the blade. 3: Please ensure cutting in straight direction and avoid curve cutting during the cutting process of blade. 4: The cutting machine should be equipped with safety guard. The operator should wear safely clothing, gloves, and spectacles protection products during the cutting operation. |
|
Can I cut quartz myself?
Yes, you can cut the quartz all by yourself but it is dangerous and we suggest that you’d better not do it. Due to the Mohs hardness of quartz stone can be reach up to 7, it is a difficult problem for stone processing such as opening the holes and cutting them. The overall process is not difficult, just put the right angle, and then start the cutting machine.
1. First, you should pull down angle wrench of the stone cutting machine.
2. Adjust the cutting angle of the stone cutting machine according to the thickness of the stone to be cut.
3. Then put back the wrench of the stone cutting machine and buckle it firmly.
4. When cutting, please place the part to be cut in the air and fix it.
5. Both hands should wear gloves and carry the stone cutting machine for cutting. You should be stable and not to cut crookedly.
Notice: Before you do the quartz cutting, make sure you get basic operating skills of woodworking. And at the same time you have observed the cutting operation of bricklayers. This jug is the same as a woodworker's hand-cut jug, only the blade is different.
FAQ
1. Which payment form you can accept?
T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
2: Can you do OEM and ODM?
Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
3: How many different types of products your company manufactures?
Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you
Hot Tags: 400mm quartz saw blade, China 400mm quartz saw blade manufacturers, suppliers, factory, quartz blade for slate cutting, quartz blade for fiberglass cutting, quartz blade for nickel cutting, 14 Inch Quartz Saw Blade, quartz blade for aluminum cutting, quartz blade for cutting
